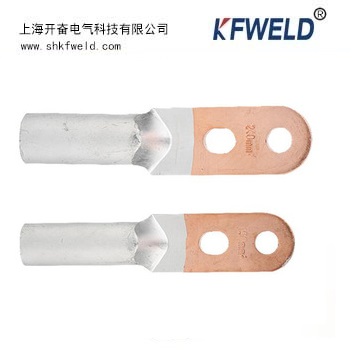

DTL 2 Holes Bimetallic Copper Aluminum Cable Lug

Model

Cable Size (mm2)

Dimension (mm)

Φ

D

d

L

L1

L2

L3

W

T

KF-DTL2-16

16

8.5

10

5.5

90

32

44

20

18

3.0

KF-DTL2-25

25

8.5

11

7.0

93

38

45

20

18

3.2

KF-DTL2-35

35

10.5

12

8.5

104

42

48

20

20

3.6

KF-DTL2-50

50

10.5

14

9.5

112

46

50

20

23

4.0

KF-DTL2-70

70

12.5

16

12

125

47

59

25

26

4.5

KF-DTL2-95

95

12.5

18

13

136

53

60

25

28

4.8

KF-DTL2-120

120

14.5

20

15

145

55

69

30

30

5.5

KF-DTL2-150

150

14.5

22

16

150

55

70

30

34

6.0

KF-DTL2-185

185

14.5

24

18

162

62

76

35

37

6.5

KF-DTL2-240

240

16.5

27

20

170

65

78

35

40

7.0

KF-DTL2-300

300

18

30

23

190

72

87

40

45

8.5

KF-DTL2-400

400

21

34

26

195

75

87

40

50

8.5

KF-DTL2-500

500

21

38

29

225

80

110

45

60

9.5
